Nonlinear Analysis Using the Latest Tool

By using the nonlinear structural analysis tools WCOMD and COM3 which are under development eagerly at the concrete laboratory, the department of civil engineering, the University of Tokyo, response analysis of reinforced concrete structure is performed and damaged condition is predicted.

We link directly with the concrete laboratory at the University of Tokyo which actually conducts development of the analysis tools. Therefore, it is possible to optimize and code source programs to each analysis case, and to carry out the maximum practical use of the ability. # Software is not for sale!

Furthermore, the staff who has gained experience by being engaged in development and verification of the analysis tools takes charge of analysis work.

#About the scheme of the analytical method, please look at the explanation in "■ Technology" of CONTENTS.

An Example of the Analysis

STATIC ANALYSIS OF CYLINDRICAL TANK1)

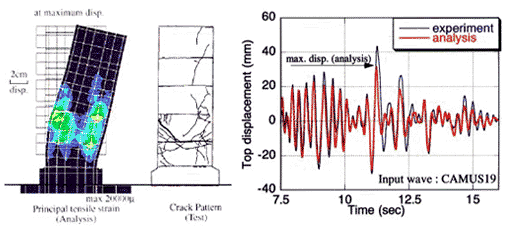

SHAKING TABLE TEST OF SHEAR WALL1)
-CAMUS INTERNATIONAL COMPETITION-


References

1) Naoyuki FUKUURA : Path-dependent Constitutive Model of Reinforced Concrete Panel with Cracks in Four Directions, Ph.D. Dissertation of the University of Tokyo, 1999. (in Japanese)
